Comprehensive Integrated Detention Information System Advanced With AI Analyzing Technology
| MOQ: | 1 |
| Price: | Against Enquiry |
| Standard Packaging: | Wooden Case Packing |
| Delivery Period: | 30-40days |
| Payment Method: | T/T |
| Supply Capacity: | 10units/month |
Detail Information
Place of Origin
CHINA
Brand Name
JWS
Certification
CE
Model Number
JWS IDIS
Facial Recogtion:
Included
Finger Print:
Included
Palm Print:
Included
Height:
Included
Highlight:
Comprehensive Integrated Detention Information System
,Comprehensive Integrated Detention Information platform
,Advanced Integrated Detention Information System
Product Description
System Overview
Integral Detention Information System, IDIS, is a brand new idea of a comprehensive collection and management platform for all kinds of detainee information. With our advanced Big Data Collection and AI Analyzing Technology, IDIS is able to collect, store and analyze detainee's various information like faces, body, finger/pal prints, handwriting etc.
General Functions: Data Display/Data Enquiry/Fingerprint Comparison/Iris Comparison/Face Comparison/Handwriting Comparison/Full Body Scanning Comparison/Notice Publication, Display Module for other Application Systems and etc.
It also provides open interfaces for face data, iris, fingerprint, voiceprint, basic information, etc., which facilitates data interconnection with other hardware systems in the prison.
Parameters

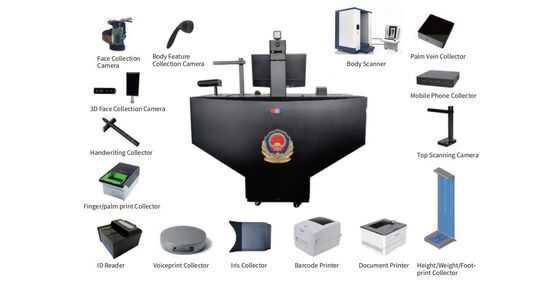

| Item | Specification | Remarks |
|---|---|---|
| Integrated Collection System Software | One stop collection and management of detainee information like basic, fingerprint, portrait, DNA, voice, iris, handwriting, personal belongings , special physical features, height, weight, and foot length information, etc | Standard |
| Collection Operation Console | Operation desk | |
| Face Collection Camera | High-definition 1000W pixel portrait camera module, auto focus, fill light, standard portrait format storage | |
| Top Scanning Camera | Scanning detainee’s belongings like documents, ID cards, notes, pictures, three-dimensional objects, the cantilever can rotate freely 180 degrees horizontally; 10 million pixels; Support JPEG, T1F, BMP and etc; Scanning size: ≤A4; Scanning speed: ≤1s; | |
| ID Reader | Auto reader of ID card/passport, Compliant with IS0/1EC 14443 type B, working distance 0-50mm, reading time <1s | |
| Height/Weight/Footprint Collector | Automatic measuring of height, weight, and foot length information, and automatically filled in the software; | |
| Finger/Palm Print Collector | Integrated finger/palm print collector, CMOS sensor, Collection window size: ≥121mmX121mm | |
| Handwriting Collector | collecting handwriting information, including the collection of people's writing trajectory, point code coordinates, pressure value, writing time and other data, which is used for database construction for comparison. | |
| Body Feature Collection Camera | collecting information such as scars, tattoos, physiological marks, etc. on a person's body from head to toe; 2 million pixels | |
| Fill Light | Auto fill light, Uniform brightness, temperature>5400K | |
| Laser Document Printer | Maximum printing size A4; Printing speed: ≥24ppm; Resolution: 600dpi, USB 2.0 interface; Supports double-sided printing. | |
| Barcode Printer | Interface type: USB2.0; Printing method: thermal/thermal transfer; Resolution ≥200dpi; Printing width: 80mm; Printing speed 150mm/s; | |
| Barcode Scanner | single-line scanning; Trigger mode: automatic; Scanning angle:left and right, front and back, rotation | Optional |
| UPS | 750VA/900W: 20-30 min usage against actual operation | |
| Drying Box | For storing detainee's DNA oral mucosal test strips or blood samples, with intelligent humidity control, Capacity 20L, Power:3W, and no noise. | |
| Power Controller | Automatic supplying power to system components, 12 DC220 Power supplies, Max 16A output, with leakage and overload protection | |
| IPC | CPU: Intel Core i7 4th generation;Memory: 8GB; Hard disk: 480GB SSD+1TB mechanical; Power supply: 500W; | |
| Display | 24’’ LED IPS curved display/ Resolution: 1920*1080 (Full HD) | |
| Iris Collector | collecting detainee's iris information, original vector diagrams and feature data of irises, and to establish an iris recognition database. | |
| Footprint Collector | rapid collection of sole images, upper images and barefoot footprint images. Scanning Area: 350mm*150mm | |
| Voiceprint Collector | collecting the voiceprint information of detainee, output the original voiceprint file according to the corresponding standard. | |
| Finger Vein Collector | Collecting detainee’s finger vein information | |
| Palm Vein Collector | Collecting detainee’s palm vein information | |
| Drug Testing Collector | Detecting the hair, blood and other media to determine whether detainee has taken drugs recently and the type of drugs | |
| 3D Face Collection Camera | Collecting the 3D structure information of detainee's face to establish a 3D face database. | |
| Card Printer | For card printing, card thickness: 0.3mm-1.05mm | |
| Mobile Phone Collector | Collecting basic device information, instant messaging,social media, email, browsing history, geographic information, e-commerce, connected device , other application information, etc. | |
| X-Ray Body Scanner | Collecting scanning images of both inside and outside of detainee’s body. |
