Easy Installation Security Screening Devices High Accuracy For Public
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Export Packing |
| Delivery Period: | 35-69DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-12 UNITS/MONTH |
Easy Installation Security Screening Devices
,Security Screening Devices For Public
,airport security screening machine For Public

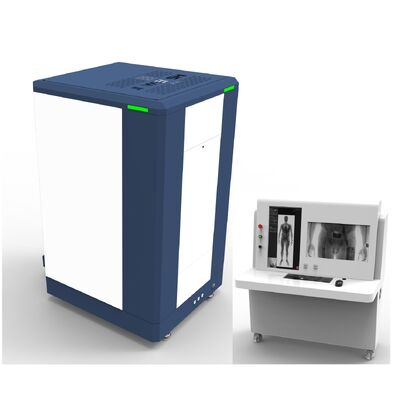

Vertical Dual View X-ray Security Body Scanner for Drug Detection
Functions:
The JWS X-ray Security Body Scanner gives thorough security scanning without intrusion. Its leading micro-dosage X-ray technology reveals concealed items both on and within inspected person's body, making manual searches unnecessary.
Scanning results against metal and non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.
Applications Scenarios:
The JWS-X10 X-ray Body Scanner is designed for various high-security applications, from traditional law enforcement and correctional settings like prisons, police bureaus, and drug rehab centers, to critical infrastructure such as border crossings, customs, airports, and seaports. It is also an ideal solution for securing government buildings, corporate warehouses, mining facilities & major public venues like conference centers.
JWS-X10 Dual View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10CDV |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10 Seconds (Full Body Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2.0M |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W, Peak 4kw |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Mobile Deployment
The JWS-X10's vertical scanning design, with its generator and detector fixed on a single base, ensures a permanently aligned beam path. This allows the entire unit to be relocated and redeployed without the need for recalibration. - Easy Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are needed for fast deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6m2. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional generator and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Pricing
By utilizing a vertical scanning design, the JWS-X10 X-RAY BODY SCANNER incorporates a much smaller detector, drastically cutting hardware costs. This is a key differentiator for dual-view models: unlike horizontal scanners that need two full sets of components, the JWS-X10 X-RAY BODY SCANNER requires only one. This innovative approach delivers cost savings of 30-50% or more over competing international brands.
