High Resolution Body Scanner Airport Vertical Whole Body Scanner
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Export Packing |
| Delivery Period: | 41-62DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-10 UNITS/MONTH |
High Resolution Body Scanner Airport
,High Resolution Whole Body Scanner
,Vertical Body Scanner Airport

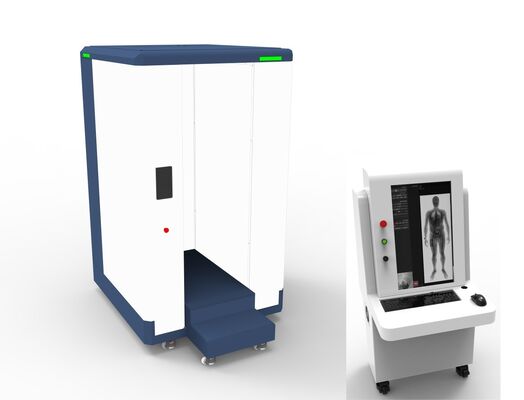

JWS-X10-Single View Vertical Micro-dose X-ray Security Body Scanner
Introduction:
The JWS X-ray Security Body Scanner is able to generate high resolution security screening without intrusion. Its leading micro-dosage X-ray imaging technology reveals concealed contrands both outside and inside of a person's body, free from manual searches.
The JWS-X10 Body Scanner offers world-leading scanning performance, reliably detecting and scanning a wide range of metallic & non-metallic contrabands, including firearms, ammunition, ceramic knives, explosives, hazardous liquids, microelectronics, and powdered substances and etc.
Application area:
Prison, Detection Facility, Customs, Mine Companies, Drug Rehabilitation Center, Border Patrol,Airport, Railway Stations, Ports, Police Anti-Drug Bureau, Warehouse, Meeting Centers, Government Buildings, Institutes
JWS-X10 X-ray Security Body Scanner Specifications (Single View):
| Product | Micro- Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10 |
| Working Mode: | Vertical Scanning of Full and Selected Aera of Inspected Person |
| Time per Scan: | 6-10 Seconds |
| Scanning Dosage per Scan: | 0.2 to 4 μSv ( Four Adjustable Modes) |
| Liner Resolution: | 38 AWG, i.e. 0.101mm metal wire |
| Scanning Height: | 2.0M |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1 mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | within L 1.94m x W 1.4m x H2.5 m |
| Weight: | 750Kg, excluding operation desk |
| Rated Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | AC 127/220Vac, 50/60hz, or against client’s need |
| Installation Mode: | Simple/Fast Installation |
Advantages - JWS-X10 X-ray Security Body Scanner
- Quick Re-Deployment
Due to the vertical scanning structure, the machine can be re-deployed as a whole unit without re-adjusting the X-ray beam path, allowing for quick redeployment. - Super Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner only requres simple cable connections for fast deployment, no need for complex installation. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is much smaller, occupying about 3 square meters. Horizontal scanners, on the other hand, typically require 5-6 square meters. - Better Imaging Quality
As the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown above). Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes(Low/Medium/High/Enhanced)
Horizontal scanners are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner are able to move up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Cost Advantge
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
