Easy Installation Airport Millimeter Scanner 50/60hz Millimeter Body Scanner
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Export Packing |
| Delivery Period: | 42-62DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-13 UNITS/MONTH |
Easy Installation Airport Millimeter Scanner
,Easy Installation Millimeter Body Scanner
,60hz Airport Millimeter Scanner

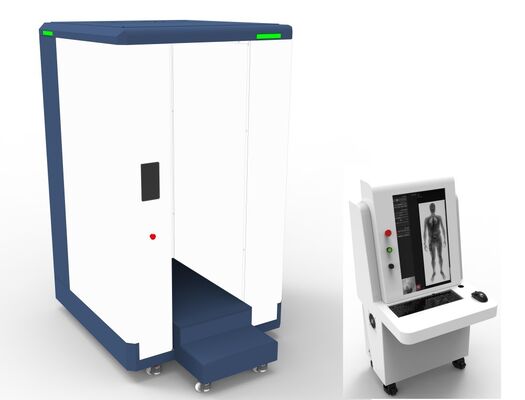

JWS-X10-Single View Vertical Micro-dose X-ray Security Body Scanner
Introduction:
The JWS X-ray Security Body Scanner supplies high quality security screening without intrusion. Its leading micro-dosage X-ray imaging technology reveals concealed threats both outside and inside of a person's body, free from manual searches.
The JWS-X10 Body Scanner generates leading scanning performance, reliably detecting and scanning a wide range of metallic & non-metallic contrabands, including firearms, ammunition, ceramic knives, explosives, hazardous liquids, microelectronics, and powdered substances and etc.
Applications:
Prison, Detection Facility, Customs, Mine Companies, Border Patrol, Airport, Railway Stations, Ports, Police Anti-Drug Bureau, Warehouse, Meeting Centers, Government Buildings, Institutes, Drug Rehabilitation Center
JWS-X10 (Single View) X-ray Security Body Scanner Specifications :
| Product | Micro- Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10 |
| Working Mode: | Vertical Scanning of Full and Selected Aera of Inspected Person |
| Time per Scan: | 7-10 Seconds, Full Body Scanning |
| Scanning Dosage per Scan: | 0.2 to 4 μSv ( Four Adjustable Modes) |
| Liner Resolution: | 38 AWG, i.e. 0.101mm metal wire |
| Scanning Height: | ≥1.9m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1 mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | L 1.94m x W 1.4m x H2.5 m |
| Weight: | 750Kg, excluding operation desk |
| Rated Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | AC 127/220Vac, 50/60hz, or against client’s need |
| Installation Mode: | Simple/Fast Installation |
Advantages - JWS-X10 X-ray Security Body Scanner
- Fast Re-Deployment
Due to the vertical scanning structure, the machine can be re-deployed as a whole unit without re-adjusting the X-ray beam path, allowing for quick redeployment. - Super Easy Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner only requres simple cable connections for fast deployment, no need for complex installation. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is much smaller, occupying around 3 square meters. Horizontal scanners typically require 5-6 square meters. - Better Imaging Performance
As the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown above). Compared to horizontal scanners, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Horizontal scanners are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner are able to move up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors.
JWS-X10 BODY SCANNER offers 4 preset Scanning Modes, Full Body/Upper/Middle/Low Areas. - Competitive Cost Advantge
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
