X Ray Airport Security Check Body Scanner OEM/ODM Adjustable 0.85KW
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Wood Cases x 2 |
| Delivery Period: | 32-68DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-11 UNITS/MONTH |
X Ray airport body scanner
,Adjustable airport security scanner
,0.85KW body scanner OEM

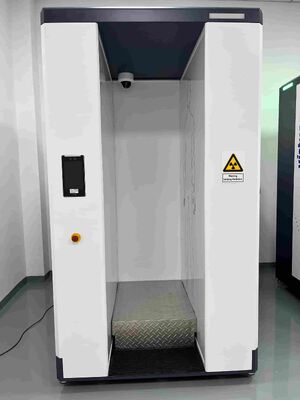

JWS-X10-SV Vertical Micro-dose X-ray Security Body Scanner, Single View
Overview:
The JWS X-ray security full-body scanner provides full non-intrusive screening and safeguards personal privacy. Its state-of-the-art low-radiation X-ray tech identifies hidden items on or inside the human body without the need for hand searches.
The JWS-X10 boasts globally competitive scanning performance and accurately detects all sorts of metal and non-metal threats: firearms, ammo, ceramic blades, explosives, toxic liquids, micro electronic hardware, powder threats and other hazardous articles.
Applications:
Prison, Detection Facility, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Mining, Warehousing, Government Buildings, Institutes, Meeting Centers
JWS-X10 X-ray Security Body Scanner (Single View) Parameters:
| Product | Micro- Dose X-ray Security Body Scanner, Single View |
|---|---|
| Model: | JWS-X10 |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 6-10 Seconds |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) for Full Body & Selected Area |
| Scanning Height: | 2.0m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Power: | ≤4KW |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Fast Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Super Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Small Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown above). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be chosen freely, without the need for additional generator and detectors. - Affordable in Cost
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
