X Ray Security Screening System Single View OEM With Advanced Technology
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Fumigation Free Wooden Cases x2 |
| Delivery Period: | 35-65DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-15 UNITS/MONTH |
Detail Information
Place of Origin
PRC
Brand Name
JIWEISHI
Certification
US ANSI/HPS N43.17-2019; China GB 15208.1/4-2018; CE,
Model Number
JWS-X10 Series Single View;
Model:
JWS-X10C-SV
OEM:
Acceptable
Pseudo Color:
Yes
Threat Marking:
Yes
Scanning Mode:
Vertical Scanning
Warranty:
One Year
Scanning Speed:
≥500 People/hr
Detection Method:
Micro Dose X-ray Transmission Imaging Technlogy
Highlight:
X Ray security screening system OEM
,Single view security screening system
,Advanced technology security screening system
Product Description

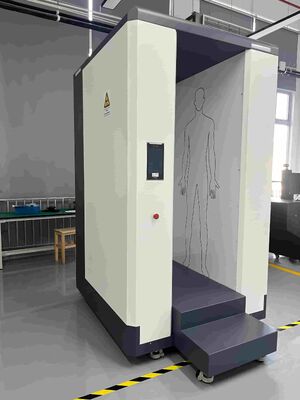

Single View Vertical Micro-dose X-ray Security Body Scanner,
Model Introduction:
The JWS X-ray body screening unit supports full-range security detection with zero privacy intrusion. Its top-grade minimal-radiation X-ray equipment visualizes hidden articles attached externally or stored inside the human body, which abolishes manual body inspection workflows.
The JWS-X10 detector owns globally advanced scanning efficiency and achieves stable recognition of diversified threatening objects of metallic and non-metallic properties: pistols, ammo, ceramic edged tools, explosive raw materials, harmful fluid reagents, miniature electronic assemblies, powdery illegal compounds and extra hazardous goods.
Application:
Prison, Airport, Detention Facility, Mine Companies, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs,Railway Stations, Ports, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 Series Single View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10C-SV, Sinlge View |
| Working Mode: | Vertical Scanning of Full or Selected Part of the Body of Inspected Person |
| Time per Scan: | 5-9 Seconds (Full Body Scanning)/ 3-5 Seconds(Partial Area Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2.0 meters |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≈L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W, Peak 4kw |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Mobile Re-Deployment
Thanks to the vertical scanning structure, JWS-X10 X-ray Security Body Scanner can be moved as a whole without re-adjusting the beam path, allowing for quick re-deployment. - Easier Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Small Occupied Area
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3m2. Horizontal scanner, on the other hand, typically requires 5-6m2. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - More Affordable
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
