High Security Airport Body Scanner 1TB Storage Capacity 850W Power
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Complete Unit in Wooden Case |
| Delivery Period: | 33-62DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 6-12 UNITS/MONTH |
Detail Information
Place of Origin
CHINA
Brand Name
JIWEISHI
Certification
GB 15208.1/4-2018; CE; ANSI/HPS N43.17-2019
Model Number
JWS-X10, Dual View
Product:
Micro-Dose X-ray Security Body Scanner System
Dual/Single View:
Single View
Zoom:
Yes
Storage Capacity:
1 TB
OEM Brand:
YES
Warranty:
One Year
Scanning Speed:
≥500 People/hr
Detection Method:
Micro Dose X-ray Transmission Imaging Technlogy
Highlight:
High Security Airport Body Scanner 1TB Storage
,Airport Body Scanner 850W Power
,Security Screening System with 1TB Storage
Product Description

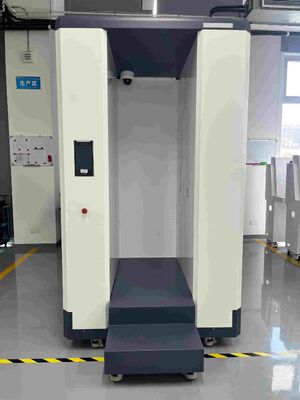

JWS-X10 Vertical Micro-dose X-ray Security Body Scanner, Single View
Product Functions:
The JWS X-ray human body inspection scanner enables comprehensive, non-disruptive security checks while safeguarding individual privacy. Its revolutionary low-dose X-ray imaging system reveals threats concealed on or inside people, removing the trouble of manual body searches.
As a model with internationally superior scanning performance, the JWS-X10 device can consistently identify a broad spectrum of metal and non-metal hazards such as firearms, ammunition, ceramic blades, explosive mixtures, risky liquid chemicals, microcircuit parts, powdered illicit products and other restricted items.
Applications:
Prison, Detection Facility, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Mine Companies, Warehouse, Government Buildings, Meeting Centers
JWS-X10 Micro-dose X-ray Security Body Scanner Single View Parameters:
| Product | Micro- Dose Vertical X-ray Security Body Scanner, Dual View |
|---|---|
| Model: | JWS-X10C-SV |
| Working Mode: | Vertical Scanning of Full or Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-9 Seconds |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) for Full Body & Selected Area |
| Scanning Height: | ≥2.0m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg, excluding console |
| Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Vertical Security Body Scanner
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment. - Small Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown above). Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). As the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
