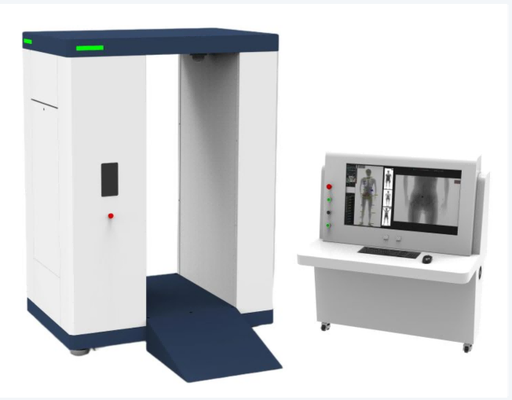

JWS-X20C-DV Intelligent Micro-Dose X-ray Body Scanner - Dual View
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Fumigation Free Wooden Cases x2 |
| Delivery Period: | 35-65DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-15 UNITS/MONTH |
Detail Information
Place of Origin
PRC
Brand Name
JIWEISHI
Certification
GB15208 1/4-2018, CE, ANSI/HPS N.43.17-2009
Model Number
JWS-X20C-DV, Dual View
Highlight:
Intelligent Micro-Dose X-ray Body Scanner
,Dual View X-ray Body Scanner
,Security Screening System with warranty
Product Description
Single View Vertical Micro-dose X-ray Security Body Scanner,
Model Introduction:
This equipment utilizes globally leading micro-dose X-ray scanning imaging technology and features a world-first channel-type structural design, better suited for security inspection scenarios. It integrates advanced AI intelligent recognition technology, eliminating the need for manual body searches. It achieves non-contact intelligent security inspection of dangerous and prohibited items concealed inside or on the body of the inspected person, displaying in real-time the type, size, and concealed body part of the item for precise inspection results.
It is suitable for detecting items such as firearms and ammunition, controlled knives (ceramic knives), explosives, hazardous liquids, microelectronic devices, pills, powders, and other metallic and non-metallic items. Its imaging effect and security inspection performance are at an internationally leading level, making it a leading brand in the domestic industry. The product is suitable for public security and special security inspection applications.
Application:
Prison, Airport, Detention Facility, Mine Companies, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs,Railway Stations, Ports, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 Series Single View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X20C-DV, Dual View |
| Channel Structure: | Channel-type structure |
| Scanning Area: | Whole body and localized areas (37-inch 4K high-definition dual-zone display) |
| Scanning Method: | Vertical scanning; whole body and localized scans can be completed without the subject moving. |
| Single Examination Time: | 4-10 seconds |
| Single Examination Dose: | 25-5μSv (adjustable) |
| Linear Resolution: | 38 AWG/0.101mm metal wire |
| Scanning Height: | 2.0 meters |
| Spatial Resolution: | 1.0 millimeter |
| Image Resolution: | ≥2048×1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Main Unit Dimensions: | ≤1.8m (L) x 1.2m (W) x 2.5m (H) |
| Total Equipment Weight: | 950KG (excluding operating table) |
| System Power Consumption: | Rated power 850W, peak power <4KW |
| Operating Temperature | 0°C～+40°C/5%～95% (non-condensing) |
| Power Supply Requirements: | AC 220V, 50Hz±3Hz |
| Installation Method: | Integrated, quick installation, rapid deployment, and easy relocation. |
Key Features:
- Channel-style structure, standing inspection mode, allowing for front-in, back-out inspection, high throughput.
- Integrated transportation, complete unit deployment and delivery, supports rapid secondary relocation and deployment.
- Flexible and diverse scanning methods, offering multiple modes.
- Horizontal optical path, superior imaging quality.
- Integrated dose management system, fully automated management of radiation safety for inspected personnel and operators.
- Fully automated security inspection with intelligent operation. Automatic identification, automatic scanning, automatic image interpretation, no manual intervention required, significantly improving security inspection efficiency (optional).
- AI intelligent image interpretation, automatically identifying various prohibited and dangerous items.
- Supports cartoon-style image interface, enhancing privacy protection (optional).
- Accessibility: Supports security inspections for disabled persons and individuals with plaster casts covering their body parts; supports wheelchair accessibility.
