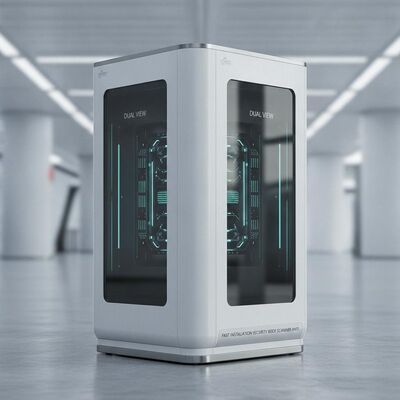

Fast Installation Security Body Scanner Anti With Dual View
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Integral Unit in Wooden Cases |
| Delivery Period: | 30-60DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-10 UNITS/MONTH |
Fast installation security body scanner
,Dual view detection body scanner
,Anti security body scanner
Capable of detecting threats concealed beneath garments, this X‑ray human screening scanner provides solid detection outcomes for security check scenarios. Its built‑in dual‑view imaging system acquires dual‑angle imagery in one scan cycle, supporting inspectors to recognise hidden hazardous goods efficiently. Radiation dosage is kept within safe limits, satisfying international human‑body scanning safety specifications.
Engineered for heavy‑duty site deployment, the device adapts well to high‑volume checkpoint usage scenarios. Simplified operation logic shortens staff learning cycles, and consistent operational reliability minimises regular maintenance demands. It is suitable for deployment at airports, transport terminals, border inspection posts and important public‑access sites.
Prisons, Detection Facility, Rehabilitation Center, Border Patrol, Customs, Airport, Railway Stations, Ports, Mine Companies, Warehouse, Government Buildings, Institutes, Meeting Centers, Security Department Anti-Bureau
| Product | Micro- Dose X-ray Security Body Scanner Dual View |
| Model: | JWS-X10c dv |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 3-8 Seconds |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) |
| Scanning Height: | 2.0m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Power: | 850w |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
- Mobile Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single fixed base. The system can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Simpler Installation
Also thanks to the fixed position of the generator and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Small Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest path (as shown above). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dosage conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Various Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - More Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than horizontal models. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to other brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
