Micro-dose JWS X-ray Full Body Scanner, AI Powered, Dual View
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Fumigation Free Wooden Cases x2 |
| Delivery Period: | 30-70DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-15 UNITS/MONTH |
Micro-dose JWS X-ray scanner
,AI powered full body scanner
,Dual view security screening system

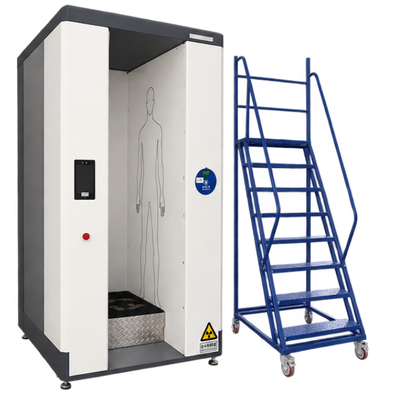

Micro-dose JWS X-ray Full Body Scanner, AI powered, dual view
Model Introduction:
Equipped with world-leading micro-dose X-ray scanning imaging technology, our dual-view X-ray body security scanner is capable of detecting both internally concealed items and externally carried objects on screened individuals, thereby eliminating the need for manual searches.
In terms of detection capabilities for metallic and non-metallic threats, including firearms and ammunition, metal or ceramic knives, explosives, hazardous liquids, microelectronic devices, and powdered pills, the JWS-10 dual-view scanner maintains a leading position in the global market.
Application:
Prison, Airport, Detention Facility, Mine Companies, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs,Railway Stations, Ports, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 Series Single View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10C-SV, Sinlge View |
| Working Mode: | Vertical Scanning of Full or Selected Part of the Body of Inspected Person |
| Time per Scan: | 3-8 Seconds (Full Body Scanning)/ 3-5 Seconds(Partial Area Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2.0 meters |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≈L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W, Peak 4kw |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- More Mobile Re-Deployment
Thanks to the vertical scanning structure, JWS-X10 X-ray Security Body Scanner can be moved as a whole without re-adjusting the beam path, allowing for quick re-deployment. - Quicker Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Occupied Area
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3m2. Horizontal scanner, on the other hand, typically requires 5-6m2. - High Imaging Quality
Because the generator and detector of the JWS-X10 X-ray Security Body Scanner are stationary, the beam path consistently follows the shortest, most efficient route (as illustrated in the figure on the right). Compared with horizontal scanners, the penetration distance is substantially reduced. Under identical dose conditions, the detector of the JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in enhanced image quality.
- Flexible Scanning Modes
Horizontal scanners are constrained by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector). Because the generator and detector of the JWS-X10 X-ray Security Body Scanner can move vertically, scanning of the entire body or any designated region can be performed freely, without requiring additional generators or detectors.
- More Affordable Price
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
