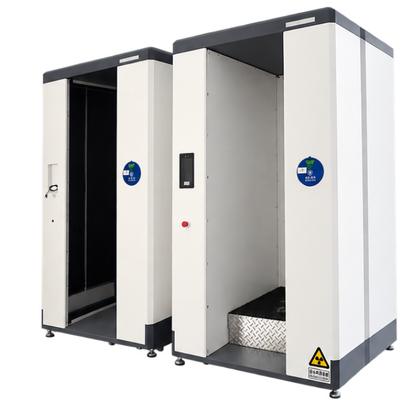

JWS Smart Micro-Dose X-ray Personnel Screening And Inspection System
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Fumigation Free Wooden Cases x2 |
| Delivery Period: | 32-68DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-15 UNITS/MONTH |
Smart Micro-Dose X-ray screening system
,Personnel inspection system with X-ray
,Security screening system with micro-dose
JWS Smart Micro-Dose X-ray Personnel Screening and Inspection System
Model Introduction:
Our Dual-View X-ray Body Security Scanner utilizes advanced micro-dose X-ray scanning imaging technology to detect objects hidden inside a person's body as well as items carried on the body, thereby eliminating the need for manual frisking.
Featuring internationally competitive detection capabilities, the JWS-10 model effectively detects an extensive range of metallic and non-metallic threats, including firearms, ammunition, metal and ceramic knives, explosives, hazardous liquids, microelectronic devices, and powdered threats.
Application:
Prison, Airport, Detention Facility, Mine Companies, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs,Railway Stations, Ports, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 Series Single View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10C-SV, Sinlge View |
| Working Mode: | Vertical Scanning of Full or Selected Part of the Body of Inspected Person |
| Time per Scan: | 4-7 Seconds (Full Body Scanning)/ 3-5 Seconds(Partial Area Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2.0 meters |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≈L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W, Peak 4kw |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- More Mobile Re-Deployment
Due to the vertical scanning structure, JWS-X10 X-ray Security Body Scanner can be moved as a whole without re-adjusting the beam path, allowing for quick re-deployment. - Easier Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Occupied Area
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3m2. Horizontal scanner, on the other hand, typically requires 5-6m2. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - More Affordable
Thanks to its distinctive vertical scanning design, the detector of the JWS-X10 X-ray Security Body Scanner is considerably more compact than that of a horizontal scanning system. In comparison with leading international manufacturers, the JWS-X10 X-ray Security Body Scanner offers a competitive advantage of 30–50% or even greater!
