JWS Advanced Micro-dose X-ray People Screening System With AI Threat Detection
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Fumigation Free Wooden Cases x2 |
| Delivery Period: | 40-6DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-15 UNITS/MONTH |
Micro-dose X-ray People Screening System
,AI Threat Detection Security Screening System
,People Screening System with AI Detection

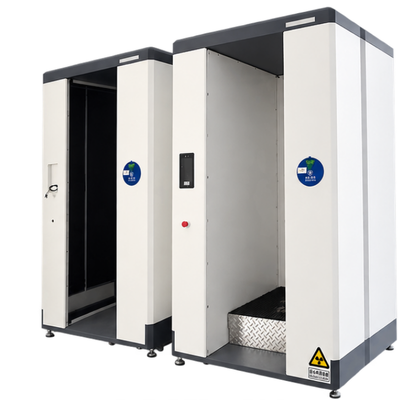

JWS Advanced Micro-dose X-ray People Screening System With AI Threat Detection
Model Introduction:
Utilizing globally advanced micro-dose X-ray scanning imaging technology, our dual-view X-ray body security scanner provides thorough screening of both internally concealed items and externally carried objects, removing the need for manual physical searches.
On the international market, the JWS-10 X-ray body scanner demonstrates outstanding performance in detecting a wide range of metallic and non-metallic threats, including firearms and ammunition, metal and ceramic knives, explosives, hazardous liquids, microelectronic devices, and powdered substances.
Application:
Prison, Airport, Detention Facility, Mine Companies, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs,Railway Stations, Ports, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 Series Single View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10C-SV, Sinlge View |
| Working Mode: | Vertical Scanning of Full or Selected Part of the Body of Inspected Person |
| Time per Scan: | 3-6 Seconds (Full Body Scanning)/ 3-5 Seconds(Partial Area Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2.0 meters |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≈L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W, Peak 4kw |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Mobile Re-Deployment
Thanks to the vertical scanning structure, JWS-X10 X-ray Security Body Scanner can be moved as a whole without re-adjusting the beam path, allowing for quick re-deployment. - Quick Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Small Occupied Area
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3m2. Horizontal scanner, on the other hand, typically requires 5-6m2. - High Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - More Affordable Price
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
