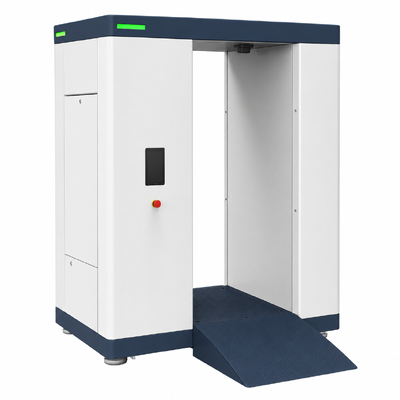

JWS-X20 Walk-Through X-ray Personnel Security Screening System
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Fumigation Free Wooden Cases x2 |
| Delivery Period: | 35-65DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-15 UNITS/MONTH |
Walk-Through X-ray Screening System
,Personnel Security Screening System
,X-ray Personnel Screening Equipment
JWS-X20 Walk-Through X-ray Personnel Security Screening System
Model Introduction:
This equipment adopts globally leading micro-dose X-ray scanning imaging technology and features a pioneering channel-type structural design, making it more suitable for various security screening scenarios. It integrates advanced AI-powered recognition technology, eliminating the need for manual body searches. It enables contactless intelligent screening of dangerous items concealed inside or carried on the body of the person being screened, displaying the category, dimensions, and concealment location of detected items in real time to support accurate inspection.
It is capable of detecting firearms and ammunition, controlled knives (including ceramic knives), explosives, hazardous liquids, microelectronic devices, pills, powders, and other metallic and non-metallic items. Its imaging quality and screening performance are internationally competitive, establishing it as a recognized brand in the domestic security inspection industry. The product is suitable for public security operations and specialized security screening applications.
Application:
Prison, Airport, Detention Facility, Mine Companies, Rehabilitation Center, Security Department Anti- Bureau, Border Patrol, Customs,Railway Stations, Ports, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X20 Series Single View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X20C-DV, Dual View |
| Channel Structure: | Channel-type structure |
| Scanning Area: | Whole body and localized areas (37-inch 4K high-definition dual-zone display) |
| Scanning Method: | Vertical scanning; whole body and localized scans can be completed without the subject moving. |
| Single Examination Time: | 4-10 seconds |
| Single Examination Dose: | 0.25-5μSv (adjustable) |
| Linear Resolution: | 38 AWG/0.101mm metal wire |
| Scanning Height: | 2.0 meters |
| Spatial Resolution: | 1.0 millimeter |
| Image Resolution: | ≥2048×1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Main Unit Dimensions: | ≤1.8m (L) x 1.2m (W) x 2.5m (H) |
| Total Equipment Weight: | 950KG (excluding operating table) |
| System Power Consumption: | Rated power 850W, peak power <4KW |
| Operating Temperature | 0°C～+40°C/5%～95% (non-condensing) |
| Power Supply Requirements: | AC 220V, 50Hz±3Hz |
| Installation Method: | Integrated, quick installation, rapid deployment, and easy relocation. |
Key Features:
- Channel-style structure, standing inspection mode, allowing for front-in, back-out inspection, high throughput.
- Integrated transportation, complete unit deployment and delivery, supports rapid secondary relocation and deployment.
- Flexible and diverse scanning methods, offering multiple modes.
- Horizontal optical path, superior imaging quality.
- Integrated dose management system, fully automated management of radiation safety for inspected personnel and operators.
- Fully automated security inspection with intelligent operation. Automatic identification, automatic scanning, automatic image interpretation, no manual intervention required, significantly improving security inspection efficiency (optional).
- AI intelligent image interpretation, automatically identifying various prohibited and dangerous items.
- Supports cartoon-style image interface, enhancing privacy protection (optional).
- Accessibility: Supports security inspections for disabled persons and individuals with plaster casts covering their body parts; supports wheelchair accessibility.
