High Performance People Screening System Easy Operation For Meeting Centers

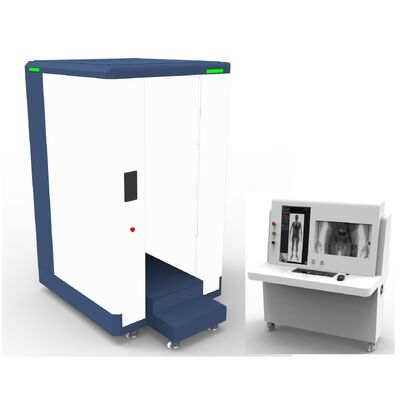

Vertical Micro-dose X-ray Security Body Scanner, JWS-X10 Dual View

Functions:

The JWS X-ray Security Body Scanner ensures thorough security screening without intrusion. Its leading micro-dosage X-ray technology reveals concealed items both on and within a person's body, making manual searches unnecessary.

Scanning results and performance against metal and non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.

Applications Scenarios:

Prison, Detection Facility, Mine Companies, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports,, Warehouse, Government Buildings, Institutes, Meeting Centers

JWS-X10 X-ray Security Body Scanner Specifications (Dual View):

Advantages - JWS-X10 X-ray Security Body Scanner

1. Mobile Deployment Ability
   Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be re-deployed as a whole without re-adjusting the beam path, allowing for quick redeployment.
2. Super Simple Installation
   Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner is shipped as a whole. During installation, simple cable connections are required only for fast deployment, eliminating the need for complex installation.
3. Smaller Footprint
   The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is much smaller, occupying about 3 square meters. Horizontal scanners, on the other hand, typically require 5-6 square meters.
4. Better Imaging Quality

   Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality.
5. More Flexible Scanning Modes
   Horizontal scanners are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner are able to move up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors.
6. Competitive Pricing
   Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
