Micro Dose X Ray Airport Security Full Body Scanner Mobile Deployment Flexible

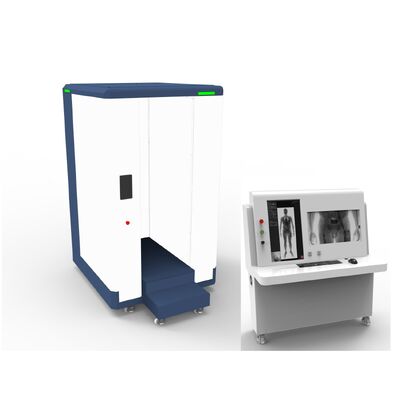

JWS-X10C Series Vertical Dual View Micro-dose X-ray Security Body Scanner,

Functions:

The JWS-X10C Series X-ray Security Body Scanner offers complete security scanning without intrusion. Its leading micro-dosage X-ray technology reveals concealed items both on and within inspected person's body, making manual searches unnecessary.

Scanning results against metal/non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.

Applications Scenarios:

The JWS-X10 X-ray Body Scanner is designed for a wide range of high-security applications, from traditional law enforcement and correctional settings like prisons, police bureaus, and drug rehab centers, to critical infrastructure such as border crossings, customs, airports, and seaports. It is also an ideal solution for securing government buildings, corporate warehouses, mining facilities, and major public venues like conference centers.

JWS-X10 Dual View X-ray Security Body Scanner Specifications:

Advantages - JWS-X10 X-ray Security Body Scanner

1. Mobile Deployment
   The JWS-X10's vertical scanning design, with its generator and detector fixed on a single base, ensures a permanently aligned beam path. This allows the entire unit to be relocated and redeployed without the need for recalibration.
2. Super Simple Installation
   Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning.
3. Smaller Footprint
   The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters.
4. Better Imaging Quality

   Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality.
5. More Flexible Scanning Modes
   Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors.
6. Competitive Pricing
   By utilizing a vertical scanning design, the JWS-X10 X-RAY BODY SCANNER incorporates a much smaller detector, drastically cutting hardware costs. Our JWS-X10 X-RAY BODY SCANNER requires only one set of generator and detector for dual view model. This innovative approach delivers cost savings of 30-50% or  ever higher over competing international brands.
