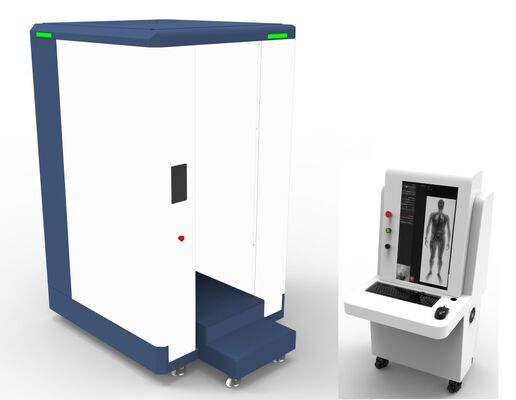

X10 Single View Vertical Micro-dose X-ray Security Full Body Scanner

Overview:

The JWS X-ray Security Body Scanner ensures high resolution security screening without intrusion. Its leading micro-dosage X-ray technology shows concealed contrands both outside and inside of a person's body, free from manual searches.

The JWS-X10 Body Scanner offers world-leading scanning performance, reliably detecting a wide range of metallic and non-metallic threats, including firearms, ammunition, ceramic knives, explosives, hazardous liquids, microelectronics, and powdered substances and etc.

Applications:

Prison, Detection Facility, Border Patrol, Police Anti-Drug Bureau, Mine Companies, Drug Rehabilitation Center,  Customs, Airport, Railway Stations, Ports,  Warehouse,  Meeting Centers, Government Buildings, Institutes....

JWS-X10 X-ray Security Body Scanner Specifications (Single View):

Advantages - JWS-X10 X-ray Security Body Scanner

1.  Fast Re-Deployment
   Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are mounted on one common base, ensuring a fixed position. The machine can be re-deployed as a whole without re-adjusting the X-ray beam path, allowing for quick redeployment.
2. Super Easy Installation
   Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner is packed and shipped in near complete form. Only simple cable connections are required for fast installation, no need for complex adjustment.
3. Smaller Footprint
   The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is much smaller, occupying about 3 square meters. Horizontal scanners, on the other hand, typically require 5-6 square meters.
4. Better Imaging Performance

   As the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in above figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality.
5. Four Flexible Scanning Modes
   Horizontal scanners are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner are able to move up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors.
6. Competitive Cost
   Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
