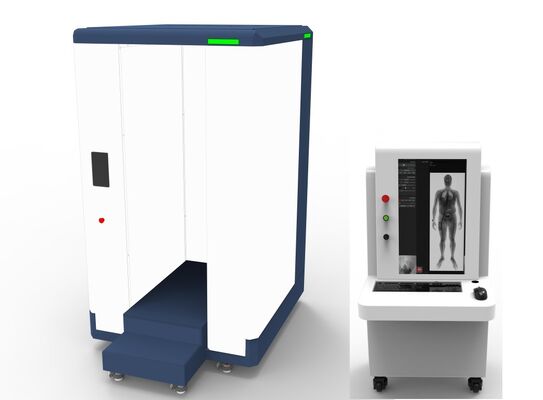

Single View Prison Body Scanner 65DB Developed 850W Rated Power
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Wooden Cases |
| Delivery Period: | 33-65DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 6-17 UNITS/MONTH |
Single View Prison Body Scanner
,Single View body scanner jail
,Developed Prison Body Scanner
Dual View JWS-X10C-SV, X-ray Personnel Security Screening System
Functions:
The JWS X-ray Security Body Scanner is developed and made with advanced micro-dosage X-ray technology to conduct non-intrusive security screenings. This system is engineered to identify items concealed on an individual's person or within body cavities, thereby providing a high level of security while rendering manual search procedures obsolete.
Scanning images against metal and non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, drug pills/powder and etc are leading in worldwide.
Applications Scenarios:
Prison, Detection Facility, Mine Companies, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports,, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 Dual View X-ray Security Body Scanner Specifications:
| Product | Micro- Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10C-SV |
| Working Mode: | Vertical Scanning of Full; Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10 Seconds (Full Body Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2.0m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Super Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex calibration. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest (like above). Compared to horizontal scanners, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional X-ray generator and detector ). AS the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed at will, without the need for additional generator and detectors. - More Affordable
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is much smaller than that of a horizontal model. This reduces overall hardware costs greatly. This is especially true for dual-view model. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
