Advanced Security Screening System Low Noise With 27'' LCD Display
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Wooden Cases |
| Delivery Period: | 36-65DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-15 UNITS/MONTH |
Advanced Security Screening System
,Advanced airline body scanner
,Low Noise Security Screening System

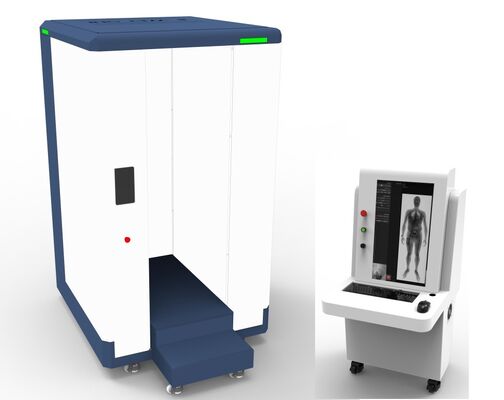

Single View Vertical Micro-dose X-ray Security Body Scanner
Functions:
The JWS X-ray Security Body Scanner is developed with advanced micro-dosage X-ray technology to conduct non-intrusive high security screenings. This system is engineered to identify items concealed on an individual's person or within body cavities, thereby providing a high level of security while rendering manual search procedures obsolete.
Scanning images against metal and non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.
Applications:
Prison, Detection Facility, Mine Companies, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports,, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 Single View X-ray Security Body Scanner Specifications:
| Product | Micro- Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10, Single View |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10 Seconds (Full Body Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2.0m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W, Peak Power 4kw |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Mobile Re-Deployment
Thanks to the vertical scanning structure, JWS-X10 X-ray Security Body Scanner can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Super Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3m2. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Cost
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
