High Performance Security Body Scanner Easy Installation 50/60hz

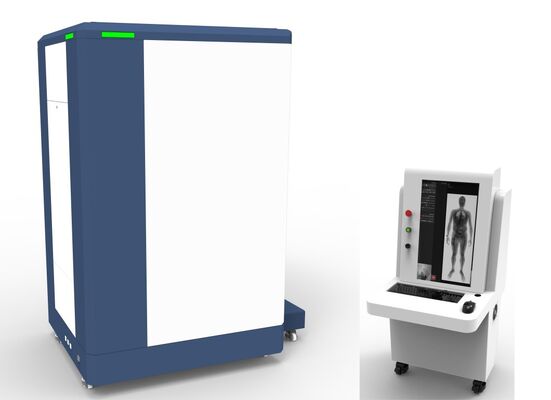

JWS-X10C SV Vertical Micro-dose X-ray Security Body Scanner, Single View

Overview:

The JWS X-ray Security Body Scanner supplies thorough security screening without intrusion. Its leading micro-dosage X-ray technology reveals concealed items both on and within a person's body, making manual searches unnecessary.

Scanning results and performance against metal or non-metal threats like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, drug pills and etc are leading in worldwide.

Applications :

Prison, Detection Facility, Mine Companies, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports,, Warehouse, Government Buildings, Institutes, Meeting Centers

JWS-X10 X-ray Security Body Scanner (Single View) Parameters:

Advantages - JWS-X10 X-ray Security Body Scanner

1. Mobile Deployment
   Due to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The machine can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment.
2. Super Simple Installation
   Also because of the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning.
3. Smaller Footprint
   The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more smaller in footprint, occupying around 3 m2. Horizontal scanner, on the other hand, typically requires 5-6 square meters.
4. Better Imaging Quality

   Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in above figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality.
5. More Flexible Scanning Modes
   Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional set of x-ray source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors.
6. Competitive  Cost
   Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
