High Efficiency Drug Detection Body Scanner With Fast Installation
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Complete Unit in Wooden Case |
| Delivery Period: | 1 Month |
| Payment Method: | T/T |
| Supply Capacity: | 5-16 UNITS/MONTH |
Detail Information
Place of Origin
P.R.C.
Brand Name
Jiweishi
Certification
CE, ANSI/HPS N43.17-2019, GB 15208.1/4-2018
Model Number
JWS-X10B, Dual View
Model:
JWS-X10B-DV (Dual View)
Shield Cabinet:
Optional
Console:
Included
Weight:
710 KG
Warranty:
One Year
Scanning Speed:
≥500 People/hr
Detection Method:
Micro Dose X-ray Transmission Imaging Technlogy
Highlight:
High Efficiency Drug Detection Body Scanner
,High Efficiency drug scanner airport
,Fast Installation Drug Detection Body Scanner
Product Description

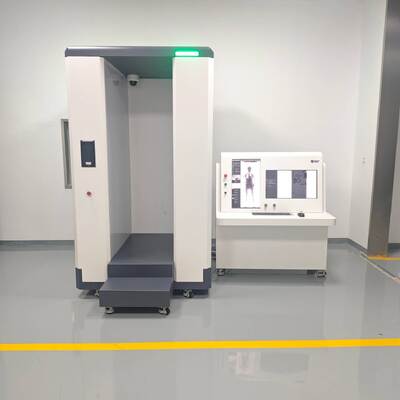

JWS-X10B-DV Vertical Micro-dose X-ray Security Body Scanner, Dual View
Brief Overview:
With the world's leading micro-dosage X-ray scanning imaging technology, JWS X-ray Dual View Security Body Scanner is able to scan both inside and body surface of the inspected person, no need for manual search.
The Scanning images and performance of JWS Dual View JWS-10 X-ray Security Body Scanner against metal/non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.
Applications:
Prison, Detection Facility, Border Patrol, Drug Rehabilitation Center, Police Anti-Drug Bureau,Customs, Airport, Railway Stations, Ports, Mine Companies, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 X-ray Security Body Scanner(Dual View) Parameters:
| Product | Micro- Dose X-ray Security Body Scanner, Dual View |
| Model: | JWS-X10B-DV |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time/Scan: | 7-10 Seconds (Full Body Scanning) |
| Scanning Dosage/Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) for Full Body and Selected Area |
| Scanning Height: | 2.0m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner, Dual View
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Simple Fast Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Short Beam Path, Better Imaging
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest path. Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Affordable Cost
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces total hardware costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
