Adjustable Drug Detection Body Scanner 0.85KW Space Saving For Customs
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Wooden Cases |
| Delivery Period: | 30-60 days |
| Payment Method: | T/T |
| Supply Capacity: | 5-17 UNITS/MONTH |
Detail Information
Place of Origin
CHINA
Brand Name
JWS
Certification
GB 15208.1/4-2018; ANSI/HPS N43.17-2019; CE;
Model Number
JWS-X10, Dual View
Item No.:
JWS-X10C, DUAL VIEW
Model:
Micro-Dose X-ray Security Body Scanner
Startup Time:
30s
Noise:
65 Db
Warranty:
One Year
Scanning Speed:
≥500 People/hr
Detection Method:
Micro Dose X-ray Transmission Imaging Technlogy
Highlight:
Adjustable Drug Detection Body Scanner
,Adjustable drug scanner machine
,Drug Detection Body Scanner For Customs
Product Description

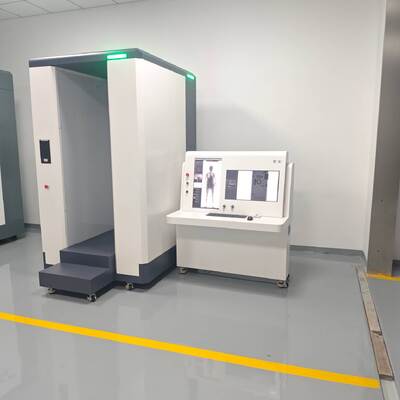

X10C Dual View Vertical X-ray Security Body Scanner
Introduction:
Adopted with the world's leading micro-dosage X-ray scanning imaging technology, our X10 X-ray Security Body Scanner is able to scan both inside and body surface of the inspected person, without anyneed for manual search.
The JWS-X10 X-ray Security Body Scanner demonstrates world-leading performance in detecting a wide range of contraband, including metallic and non-metallic items such as firearms, ammunition, knives, explosives, hazardous liquids, microelectronics, and powdered drugs.
Application Sectors:
Prison, Detection Facility, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Mine Companies, Warehouse, Government Buildings, Institutes and etc
JWS-X10c X-ray Security Body Scanner (Dual View) Parameters:
| Product | Micro- Dose X-ray Security Body Scanner Dual View |
| Model: | JWS-X10C DV |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan(Full Body): | 7-10 Seconds |
| Scanning Dosage/Scan: | Full Body 0.2-4 μSv/scan (Adjustable) |
| Linear Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) |
| Scanning Height: | ≥1.9m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Power: | ≤4KW |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner, Dual View
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Easy Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging Performance
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - More Cost Friendly
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. Compared to other international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
