38 AWG Full Body Scanner Adjustable Space Saving For Versatile Applications

Equipped with globally‑advanced micro‑dose X‑ray scanning and imaging technology, our dual‑view X‑ray body security scanner can perform internal and surface inspection on subjects, eliminating the requirement for manual pat‑down searches.

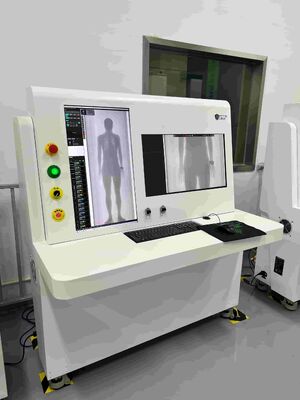

The JWS‑10 dual‑view X‑ray body security scanner delivers industry‑leading detection performance worldwide for a wide range of threats, including firearms and ammunition, metal or ceramic blades, explosives, dangerous liquids, micro‑electronic components, powder substances and pills, and other threatening items.

Jails, Detection Facility, Security Department Anti- Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Mine Companies, Warehousing, Government Buildings, Institutes, Meeting Centers, Rehabilitation Center,

1. Mobile Deployment
   Thanks to the vertical scanning structure, the JWS-X10 X-ray Security Body Scanner can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment.
2. Simpler Installation
   Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning.
3. Smaller Footprint
   The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters.
4. Better Imaging
   Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality.
5. Flexible Scanning Modes
   Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors.
6. More Competitive Pricing
   Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model.  This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only requires one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
