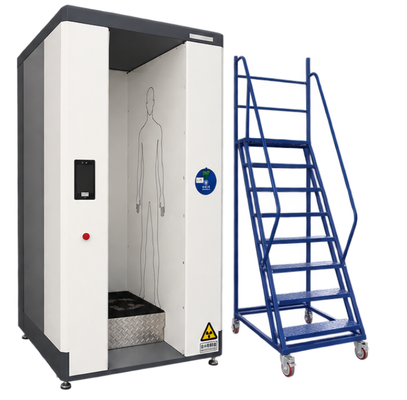

JWS Smart Vertical X-ray Body Scanner For Personnel Security Checks
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Export Packing |
| Delivery Period: | 40-62DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-10 UNITS/MONTH |
Smart Vertical X-ray Body Scanner
,Personnel Security X-ray Scanner
,People Screening Body Scanner
JWS Smart Vertical X-ray Body Scanner For Personnel Security Checks
Functions:
Utilizing globally advanced micro-dose X-ray scanning imaging technology, our dual-view X-ray body security scanner can detect concealed items inside the human body as well as objects carried on the body, thereby eliminating the need for manual pat-down inspections.
The JWS-10 dual-view scanner demonstrates superior performance compared with most competing devices worldwide in identifying various metallic and non-metallic threats, including firearms and ammunition, metal and ceramic knives, explosives, hazardous liquids, microelectronic devices, and powdered pills.
Applications:
Prisons, Detection Facility, Customs, Mines, Rehabilitation Centers, Border petrol, Airports, Railway Stations, Ports, Security Department Anti- Bureau, Logistics, Meeting Centers, Government Buildings, Institutes
JWS-X10 X-ray Security Body Scanner Specifications (Dual View):
| Product | Micro- Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10 |
| Working Mode: | Vertical Scanning of Full and Selected Aera of Inspected Person |
| Time per Scan: | 3-7 Seconds |
| Scanning Dosage per Scan: | 0.2 to 4 μSv ( Four Adjustable Modes) |
| Liner Resolution: | 38 AWG, i.e. 0.101mm metal wire |
| Scanning Height: | ≥1.9m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1 mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | within L 1.94m x W 1.4m x H2.5 m |
| Weight: | 750Kg, excluding operation desk |
| Rated Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | AC 127/220Vac, 50/60hz, or against client’s need |
| Installation Mode: | Simple/Fast Installation |
Advantages - JWS-X10 X-ray Security Body Scanner
- Quicker Re-Deployment
Thanks to the vertical scanning structure, the machine can be re-deployed as a whole unit without re-adjusting the X-ray beam path, allowing for quick redeployment. - Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner only requres simple cable connections for fast deployment, no need for complex installation. - Small Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is much smaller, occupying about 3 square meters. Horizontal scanners, on the other hand, typically require 5-6 square meters. - Better Imaging Performance
As the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown above). Compared to horizontal scanners, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes(Low/Medium/High/Enhanced)
Horizontal scanners are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner are able to move up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - More Competitive Cost Advantge
Owing to its specialized vertical scanning configuration, the detector size of the JWS-X10 X-ray Security Body Scanner is markedly smaller than that of a horizontal model. This greatly decreases overall hardware expenditures, with the benefits being particularly evident in dual-view models. While horizontal scanning systems require two sets of X-ray sources and detectors to accomplish full-body and abdominal imaging, vertical scanners operate with just one set of generator and detector, minimizing expenses. Compared with international brands, the JWS-X10 X-ray Security Body Scanner can offer a cost advantage of 30–50% or more!
