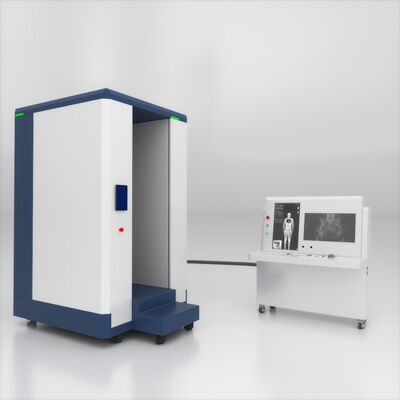

JWS-X10 Vertical Micro-dose X-ray Security Body Scanner, Dual View

JWS-X10 Vertical Micro-dose X-ray Security Body Scanner, Dual View

Introduction:

Adopted with the world's leading micro-dosage X-ray scanning imaging technology, our X-ray Security Body Scanner is able to scan both inside and body surface of the inspected person, without the need for manual search.

Scanning results and performance of JWS-10 X-ray Security Body Scanner against metal non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.

Applications:

Prison, Detection Facility, Mine Companies, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Warehouse, Government Buildings, Institutes.......

JWS-X10 X-ray Security Body Scanner (Dual View) Parameters:

Advantages - JWS-X10 X-ray Security Body Scanner

1. Mobile Deployment
   Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are mounted on a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment.
2. Simple Installation
   Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, only simple cable connections are required for rapid deployment, eliminating the need for complex adjustment job.
3. Smaller Footprint
   The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters.
4. Better Imaging

   Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality.
5. More Flexible Scanning Modes
   Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be donely freely, without additional generator and detectors.
6. Competitive Pricing
   Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
