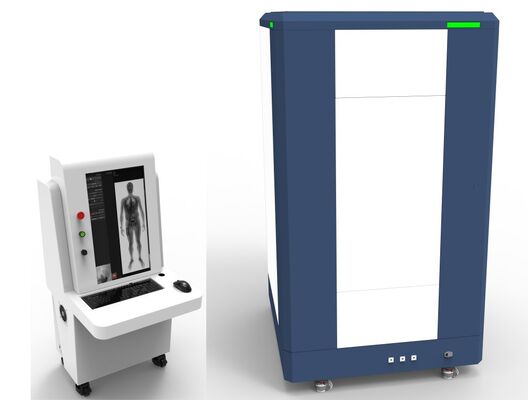

Dual View X Ray Body Scanner Non Intrusive For Railway Stations
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Wooden Cases |
| Delivery Period: | 33-66DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-11 UNITS/MONTH |
Dual View X Ray Body Scanner
,Dual View prison x ray machines
,Non Intrusive X Ray Body Scanner
JWS-X10C SV Single View Vertical Micro-dose X-ray Security Body Scanner,
Function:
The JWS X-ray Security Body Scanner utilizes advanced micro-dose X-ray technology to perform non-intrusive security screenings. This system is developed to identify items concealed on an individual's person or within body cavities, thereby providing a high level of security while rendering manual search procedures obsolete.
Scanning images against metal/non-metal contraband like guns and ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pills, and etc are leading in the global industry.
Applications:
Prison, Detection Facility,Drug Rehabilitation Center, Mine Companies, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Warehouse,Institutes, Meeting Centers, Government Buildings
JWS-X10 Series Single View X-ray Security Body Scanner Specifications:
| Product | Micro- Dose X-ray Security Body Scanner, Single View |
|---|---|
| Model: | JWS-X10C-SV |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10 Seconds (Full Body Scanning); 3-5 Seconds(Partial Area Scanning) |
| Scanning Dosage/Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | ≈2000 mm |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W, Peak Power 4kw |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position which enables the device to be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole unit. Thus, only simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Occupied Area
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3m2. Horizontal scanner, on the other hand, typically requires 5-6m2. - Better Imaging Result
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the optimal shortest path (as shown above). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller. This greatly reduces hardware costs. This is especially true for dual-view models. While horizontal models require 2 sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to others, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
