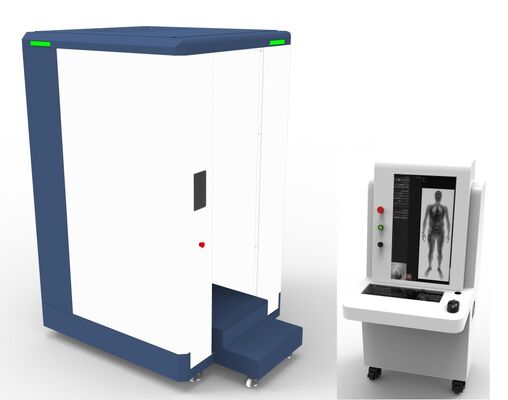

65DB Airport Security Scanner 4KW Easy Installation Millimeter Body Scanner
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Complete Unit in Wooden Case |
| Delivery Period: | 30-61DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-12 UNITS/MONTH |
Detail Information
Place of Origin
CHINA
Brand Name
JWS
Certification
CE, ANSI/HPS N43.17-2019, GB 15208.1/4-2018
Model Number
JWS-X10, Sinlge View
Model:
JWS-X10 Single View
Product:
X-ray Security Full Body Scanner
Noise:
65DB
Console:
Included, Single 27'' Display
Warranty:
One Year
Scanning Speed:
≥500 People/hr
Detection Method:
Micro Dose X-ray Transmission Imaging Technlogy
Highlight:
4KW Airport Security Scanner
,4KW Millimeter Body Scanner
,Easy Installation Airport Security Scanner
Product Description
JWS-X10 Vertical Micro-dose X-ray Security Body Scanner, Single View
Functions:
Adopted with the world's leading micro-dosage X-ray scanning imaging technology, our JWS-X10 X-ray Security Body Scanner is able to scan both inside and body surface of the inspected person, without the need for manual search.
Scanning results and performance of JWS-10 X-ray Security Body Scanner against metal/non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.
Applications:
Prison, Detection Facility, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Mine Companies, Warehouse, Government Buildings, Institutes......
JWS-X10 X-ray Security Body Scanner -Single View Parameters:
| Product | Micro- Dose X-ray Security Body Scanner(Single View) |
| Model: | JWS-X10C-SV |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10 Seconds, Full Body Scanning |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) |
| Scanning Height: | 2.0m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Power: | ≤4KW |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner, Single View
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Simple and Easy Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional generator and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
