38 AWG Resolution Drug Detection Body Scanner Smart Space Saving
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | by Wooden Cases |
| Delivery Period: | 28-59DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-16 UNITS/MONTH |
Smart Drug Detection Body Scanner
,Smart x ray machines airport
,Space Saving x ray machines airport

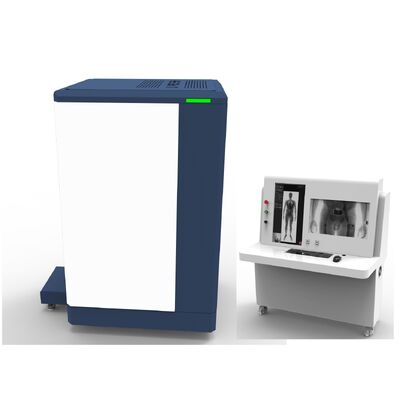

Vertical Micro-dose X-ray Security Body Scanner against Swallowed Drug
Functions:
The JWS X-ray Security Body Scanner ensures thorough security screening without intrusion. Its leading micro-dosage X-ray technology reveals concealed items both on and within a person's body, making manual searches unnecessary.
The JWS-X10 Body Scanner delivers world-leading scanning performance, reliably detecting a wide range of metallic and non-metallic threats. This includes firearms, ammunition, ceramic knives, explosives, hazardous liquids, microelectronics, and swallowed/concealed drugs and etc.
Applications Scenarios:
Prison, Detection Facility, Mine Companies, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports,, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 X-ray Security Body Scanner Specifications (Dual View):
| Product | Micro- Dose X-ray Security Body Scanner, Dual View |
|---|---|
| Model: | JWS-X10 |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 6-10 Seconds (Full Body Scanning) |
| Scanning Dosage per Scan: | From 0.2 to Max 4 μSv/scan ( Four Adjustable Modes againt Selection) |
| Liner Resolution: | 38 AWG/0.101mm metal wire |
| Scanning Height: | 2.0mm |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1 mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 0.85 KW |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | AC 127/220Vac, 50/60hz, or against client’s need |
| Installation Mode: | Complete Unit Installation |
Advantages - JWS-X10 X-ray Security Body Scanner
- Mobile Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be re-deployed as a whole without re-adjusting the beam path, allowing for quick redeployment. - Super Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner is shipped as a whole. During installation, simple cable connections are required only for fast deployment, eliminating the need for complex installation. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is much smaller, occupying about 3 square meters. Horizontal scanners, on the other hand, typically require 5-6 square meters. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path. Compared to horizontal scanners, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in better imaging quality. - More Flexible Scanning Modes
Horizontal scanners are limited by their structural design and can only perform full-body or abdominal scans (requiring an extra set of x-ray source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner are able to move up and down, scanning of the entire body or any specific area can be performed freely with only one set of generator and detector - Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
