Dual View X Ray Detector Airport AI Convenient With Flexible Modes
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Complete Unit Export Packing |
| Delivery Period: | 36-60DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-10 UNITS/MONTH |
Detail Information
Place of Origin
CHINA
Brand Name
JWS
Certification
CE, ANSI/HPS N43.17-2019, GB 15208.1/4-2018
Model Number
JWS-X10, Sinlge View
Model:
JWS-X10, Single View Model
Product:
X-ray Security Full Body Screening System
Single/Dual View:
Dual View
Noise:
65DB
AI:
YES
Warranty:
One Year
Scanning Speed:
≥500 People/hr
Detection Method:
Micro Dose X-ray Transmission Imaging Technlogy
Highlight:
Dual View X Ray Detector Airport
,Convenient X Ray Detector Airport
,Convenient x ray full body scanner
Product Description

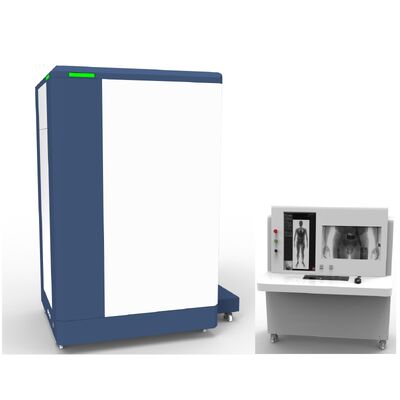

Dual View Vertical Micro-dose X-ray Security Body Scanner
Overview:
Adopted with the world's leading micro-dosage X-ray scanning imaging technology, JIWEISHI X-ray Dual View Security Body Scanner is able to scan both inside and body surface of the inspected person, without the need for manual search.
Scanning results and performance of Single View JWS-10 X-ray Security Body Scanner against metal non-metal contraband like guns&ammunition, hazardous liquids, metal/porcelain knives, explosives, microelectronic devices, powdered pills and etc are leading in worldwide.
Applications:
Prison, Detection Facility, Drug Rehabilitation Center, Airport, Police Anti-Drug Bureau, Border Patrol, Customs, Railway Stations, Ports, Mine Companies, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10 X-ray Security Body Scanner(Single View) Parameters:
| Product | Micro- Dose X-ray Security Body Scanner Dual View |
| Model No.: | JWS-X10C-DV |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10s, Full Body Scanning |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable), Full Body Scan |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) |
| Scanning Height: | ≥1.9m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Power: | Rated 0.85KW |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner, Single View
- Convenient Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in a fixed position. The machine can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, only simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, only 3 square meters required. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Better Imaging
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - More Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
