50/60hz Drug Detection Body Scanner Advanced High Efficiency
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Wooden Cases |
| Delivery Period: | 33-65DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 7-14 UNITS/MONTH |
60hz Drug Detection Body Scanner
,60hz airport scanning machine
,Advanced Drug Detection Body Scanner

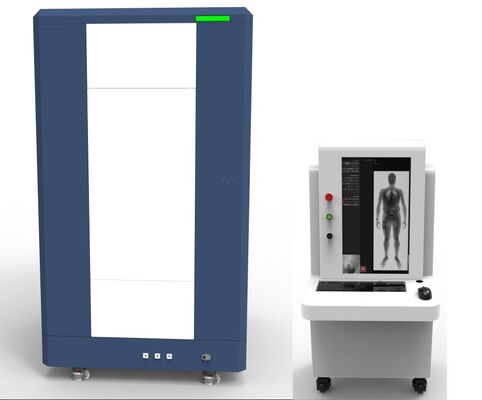

Single View Vertical Micro-dose X-ray Security Body Scanner, JWS-X10C-SV
Functions:
The JWS X-ray Security Body Scanner adpots latest cutting-edge micro-dose X-ray technology to conduct non-intrusive security screenings. This system is engineered and built to identify items concealed on an individual's person or within body cavities, thereby providing a high level of security while rendering manual search procedures obsolete.
Scanning images against metal/non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, swallowed powdered pills, microelectronic devices, and etc are leading in worldwide.
Applications Scenarios:
Prison, Detection Facility, Mine Companies, Police Anti-Drug Bureau, Drug Rehabilitation Center, Border Patrol, Customs, Airport, Railway Stations, Ports, Warehouse, Government Buildings, Institutes, Meeting Centers
JWS-X10C-SV Single View X-ray Security Body Scanner Specifications:
| Product | Micro-Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10C, Single View |
| Working Mode: | Vertical Scanning of Full/Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10 Seconds (Full Body Scanning)/ 3-5 Seconds(Slected Area Scanning) |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG (0.101mm metal Wire) for Full Body/Selected Area |
| Scanning Height: | 2000mm |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | L 1.94m x W 1.4m x H2.5 m |
| Weight: | 710Kg (Excluding Console) |
| Rated Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the JWS-X10 X-ray Security Body Scanner can be moved as a whole without re-adjusting the beam path, allowing for quick re-deployment. - Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanners of other brands, on the other hand, typically requires 5-6 square meters. - Better Imaging Result
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown above). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. While horizontal scanner requires two sets of sources and detectors to achieve full-body and torso imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
