Micro Dose X Ray Security Full Body Scanner Dual View High Resolution
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Export Packing |
| Delivery Period: | 40-62DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 5-10 UNITS/MONTH |
Micro Dose X Ray body scanner
,Dual view security scanner
,High resolution people screening

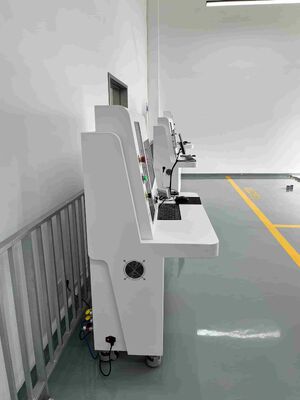

JWS-X10-Dual View Vertical Micro-dose X-ray Security Body Scanner
Functions:
Designed for non-intrusive full-body security checks, the JWS X-ray Body Scanner leverages state-of-the-art ultra-low radiation X-ray tech to spot hidden items on or inside a person, removing the requirement for manual body searches.
The JWS-X10 model features globally premier scanning capacity, with stable detection of numerous metallic and non-metallic risks: weapons such as firearms and ceramic knives, ammunition, explosives, hazardous liquids, miniature electronics, powdery materials, and other threats.
Applications:
Prison, Detection Facility, Customs, Mine Companies, Rehabilitation Center, Border Patrol,Airport, Railway Stations, Ports, Security Department Anti- Bureau, Warehouse, Meeting Centers, Government Buildings, Institutes
JWS-X10 X-ray Security Body Scanner Specifications (Dual View):
| Product | Micro- Dose X-ray Security Body Scanner |
|---|---|
| Model: | JWS-X10 |
| Working Mode: | Vertical Scanning of Full and Selected Aera of Inspected Person |
| Time per Scan: | 8-10 Seconds |
| Scanning Dosage per Scan: | 0.2 to 4 μSv ( Four Adjustable Modes) |
| Liner Resolution: | 38 AWG, i.e. 0.101mm metal wire |
| Scanning Height: | ≥1.9m |
| Scanning Width: | 1.0m |
| Spatial Resolution: | 1 mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | within L 1.94m x W 1.4m x H2.5 m |
| Weight: | 750Kg, excluding operation desk |
| Rated Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | AC 127/220Vac, 50/60hz, or against client’s need |
| Installation Mode: | Simple/Fast Installation |
Advantages - JWS-X10 X-ray Security Body Scanner
- Quick Re-Deployment
Due to the vertical scanning structure, the machine can be re-deployed as a whole unit without re-adjusting the X-ray beam path, allowing for quick redeployment. - Super Simple Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner only requres simple cable connections for fast deployment, no need for complex installation. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is much smaller, occupying about 3 square meters. Horizontal scanners, on the other hand, typically require 5-6 square meters. - Better Imaging Performance
As the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown above). Compared to horizontal scanners, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes(Low/Medium/High/Enhanced)
Horizontal scanners are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional source and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner are able to move up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - Competitive Cost Advantge
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
