Vertical Prison Body Scanner 127VAC 50hz Long Lifespan High Durability
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Complete Unit Packing |
| Delivery Period: | 31-62DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 7-11 UNITS/MONTH |
Detail Information
Place of Origin
China
Brand Name
JWS
Certification
CE, ANSI/HPS N43.17-2019, GB 15208.1/4-2018
Model Number
JWS-X10-Single View
Highlight:
Vertical Prison Body Scanner 127VAC
,Prison Body Scanner long lifespan
,High durability prison body scanner
Product Description

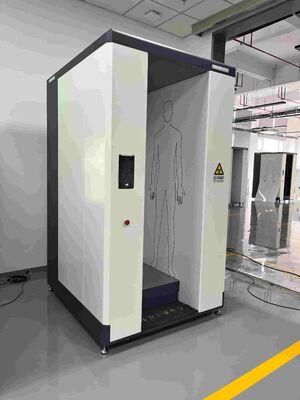

Single View Vertical Micro-dose X-ray Security Body Scanner
Introduction:
The JWS X-ray human security scanner performs full safety scanning without compromising personal privacy. Using state-of-the-art minimal radiation X-ray technology, it exposes hidden objects worn on the body or hidden internally, so manual body frisks are entirely unnecessary.
The JWS-X10 scanner features internationally elite detection performance, capable of reliably picking up all varieties of metal and non-metal threats, such as guns, ammo, ceramic blades, explosive materials, harmful liquids, tiny electronic fittings, powdery banned goods and more restricted articles.
Applications:
Prison, Rehabilitation Center, Detection Facility, Security Department, Anti-Bureau, Border Check, Customs, Airport, Railway Stations, Ports, Mining Companies, Warehousing, Government Buildings, Institutes, Meeting Centers.
JWS-X10 X-ray Security Body Scanner(Single View) Parameters:
| Product | Micro- Dose X-ray Security Body Scanner Single View |
| Model: | JWS-X10C SV |
| Working Mode: | Vertical Scanning of Full Body or Selected Part of the Body of Inspected Person |
| Time per Scan: | 5-8 Sec |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) for Full Body and Selected Area |
| Scanning Height: | ≥1.9m |
| Scanning Width: | 1.1m |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Security Body Scanner, Single View
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The device can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Faster Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. And only simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Small Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 square meters. Horizontal scanner, on the other hand, typically requires 5-6 square meters. - Short Beam Path, Better Imaging
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in same position, the beam path is always on the shortest, optimal path. Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional generator and detector ). Because the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. - More Affordable in Cost
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. This is especially true for dual-view models. While horizontal perimeter probes require two sets of sources and detectors to achieve full-body and abdominal imaging, vertical scanner only require one set of generator and detector, significantly reducing costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
