Dual View Security X Ray Machine High Performance Durable For Jail
| MOQ: | 1 |
| Price: | USD 60000~80000/SET |
| Standard Packaging: | Complete Unit in Export Wooden Case |
| Delivery Period: | 31-60DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 6-14 UNITS/MONTH |
Dual View Security X Ray Machine
,Security X Ray Machine For Jail
,security body scanner machine For Jail

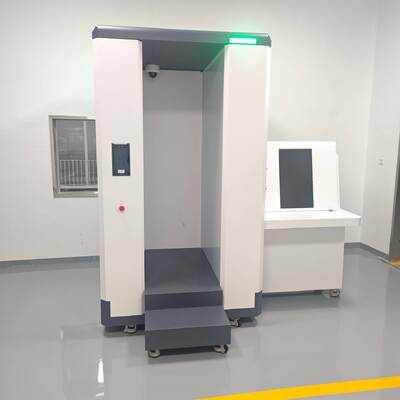

JWS-X10 Vertical Micro-dose X-ray Security Body Scanner, Single View
Introduction:
Adopted with the world's leading micro-dosage X-ray scanning imaging technology, our Single View X-ray Security Body Scanner can scan both inside and body surface of the inspected person, without the need for manual search.
Scanning results and performance of JWS-10 Single View X-ray Security Body Scanner against metal non-metal contraband like guns&ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pillsand etc are leading in worldwide.
Application Areas:
Prison, Detection Facility, Drug Rehabilitation Center, Warehouse, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Mine Companies, Government Buildings, Institutes, Meeting Centers
JWS-X10 Micro-dose X-ray Security Body Scanner Single View Parameters:
| Product | Micro- Dose Dual View Vertical X-ray Security Body Scanner Single View |
|---|---|
| Model: | JWS-X10C-SV |
| Working Mode: | Vertical Scanning of Full and Selected Part of the Body of Inspected Person |
| Time per Scan: | 7-10 Seconds |
| Scanning Dosage per Scan: | 0.2-4 μSv/scan (Adjustable) |
| Liner Resolution: | 38 AWG(Able to identify 0.101mm metal Wire) for Full Body & Selected Area |
| Scanning Height: | 2 meters |
| Scanning Width: | 1.1 meter |
| Spatial Resolution: | 1.0mm |
| Image Resolution: | ≥ 2048 x 1024 PPI |
| Contrast Sensitivity: | 0.5% |
| Sizes: | ≤L 1.94m x W 1.4m x H2.5 m |
| Weight: | About 710Kg |
| Rated Power: | 850W |
| Working Environment: | Tmp:0-+40℃; Humidity:5-95% |
| Voltage/Frequency | 127/220Vac, 50/60hz, or against client’s demand |
| Installation Mode: | Integral Fast Installation, Quick in Deployment, Easy in Displacement |
Advantages - JWS-X10 X-ray Vertical Security Body Scanner
- Mobile Re-Deployment
Thanks to the vertical scanning structure, the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed on a single base, ensuring a fixed position. The entire machine can be moved as a whole without re-adjusting the beam path, allowing for quick redeployment. - Easy Installation
Also thanks to the fixed position of the source and detector, JWS-X10 X-ray Security Body Scanner can be shipped as a whole. During installation, only simple cable connections are required for rapid deployment, eliminating the need for complex commissioning. - Smaller Footprint
The vertical scanning structure of JWS-X10 X-ray Security Body Scanner is more compact, occupying approximately 3 m2. Horizontal scanner, on the other hand, typically requires 5-6m2. - Better Imaging Quality
Because the generator and detector of JWS-X10 X-ray Security Body Scanner are fixed in position, the beam path is always on the shortest, optimal path (as shown in the right figure). Compared to horizontal scanner, the penetration distance is significantly shortened. Under equivalent dose conditions, the detector of JWS-X10 X-ray Security Body Scanner receives a stronger signal, resulting in superior imaging quality. - Four Flexible Scanning Modes
Horizontal scanner are limited by their structural design and can only perform full-body or abdominal scans (requiring an additional generator and detector ). As the generator and detector of JWS-X10 X-ray Security Body Scanner can be moved up and down, scanning of the entire body or any specific area can be performed freely, without the need for additional generator and detectors. Four available scanning modes: Full Body/Upper/Lower/Middle. - Competitive Pricing
Due to unique vertical scanning structure, the detector size of JWS-X10 X-ray Security Body Scanner is significantly smaller than that of a horizontal model. This significantly reduces overall hardware costs. Compared to international brands, JWS-X10 X-ray Security Body Scanner is able to provide 30-50% or more advatanges!
